Trap Dipole

I've never been a fan of the 'commercial' G5RV, I think they're a lazy solution made for lazy people who can't be bothered to learn anything

about antennas. Harsh maybe, but that's nothing compared to my friend Brian's G(M)0FQQ opinion of the antenna and those using them.

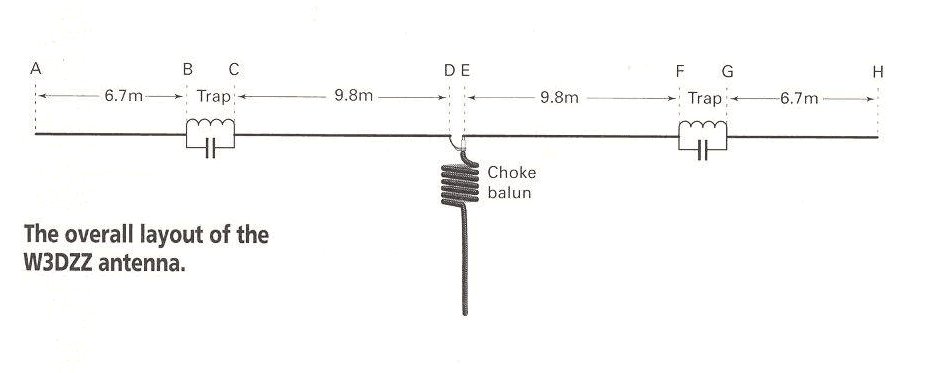

All joking aside you can do a lot better and my candidate for the task is the W3DZZ Trap Dipole. This has the advantage of not needing any

kind of Antenna Matching unit for 80m and 40m and is an ideal companion for those with beams for 20m-10m. However if you don't have a beam

they are still resonant on the pre WARC bands and will work using a ATU found in most modern rigs.

I put together one together for Dave MM3DHL and described it in Practical Wireless.   The article can be downloaded by clicking Thanks once again to PW for their kind permission to reproduce the article.     Home Page
